SigmaDSTV SW eksport za generisanje NC1 fajlova u SolidWorks softveru
SigmaDSTV SW je DSTV eksport plug-in za generisanje NC1 fajlova direktno u SolidWorks softveru koji upotpunjuje kompletno SigmaTEK rešenje za sve SolidWorks korisnike.
DSTV standard
DSTV (Deutscher Stahlbau-Verband) format je ključna veza između digitalne konstrukcije proizvoda i fizičke proizvodnje u obradi čelika. Ovaj standard, nezavistan od proizvođača mašina, omogućava jednostavan prenos 3D CAD modela u precizne instrukcije za različite CNC mašine, rešavajući potrebu industrije za povezanošću i automatizovanim radnim tokovima.
DSTV standard je osnova automatizovane proizvodnje čelika DSTV NC1 format, razvijen od strane Nemačkog udruženja za čelične konstrukcije, definiše:

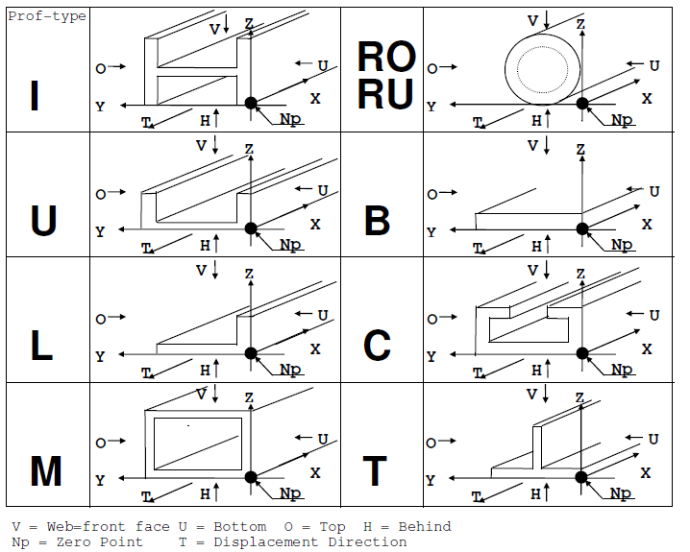

- Geometriju strukturnih elemenata (grede, ploče, profile)
- Uputstva za obradu (šeme bušenja, konture za sečenje i obradu)
- Metapodatke o materijalu (tip, količina, napomene za proizvodnju)
Struktura fajla koristi:
- AK blokove za spoljne konture
- IK blokove za unutrašnje oblike

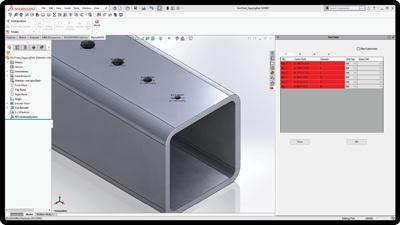

- BO blokove za pozicije rupa i proreza
- KO blokove za markere i obeležavanje
Integrated for Efficient Workflow
SigmaDSTV SW is a DSTV exporter plugin that runs inside of SOLIDWORKS and is designed to generate NC1 files for beam line and beam coping machines. The seamless integration between the SigmaDSTV plugin and SOLIDWORKS ensures an easy and efficient way to export structural designs into DSTV format.
Smart and Automatic

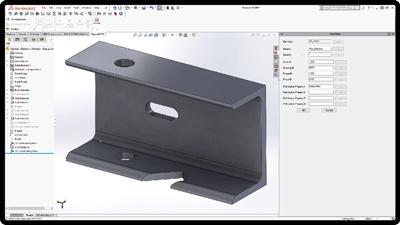

With the ability to generate DSTV files directly from native SOLIDWORKS models, SigmaDSTV SW enables users to convert single parts, multibody parts, weldments, and even assembly files. SigmaDSTV automatically recognizes profiles compatible with the NC1 format for intelligent processing.
Create files from:

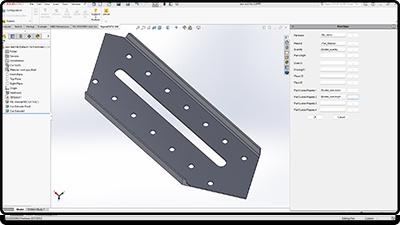

- Flat Plate
- Round
- Rectangular
- Angle
- Channel
- I-Beam
Fast Processing
Directly import any major 2D and 3D file for painless part and assembly creation
Automatic profile recognition separates
structural steel parts from other kinds of parts like nuts and bolts
Batch processing supports a fully automated workflow
Cost Effective File Handling
Includes everything needed to go from CAD model to machine file in seconds
Automatic recognition of sketches as the marking process
Able to detect all configurations of a SOLIDWORKS part and export each as an NC1
Customizable
Supports export of various views and different header mappings to match the needs of any beam line machine
Configurable geometry output options and editable lookup files for profile codes allows users meet any machine requirements
SOLIDWORKS > DSTV
Advanced Feature Recognition
Supports all SolidWorks model files including parts, assemblies, multibody and cut list modeling
Powerful Feature Recognition technology also converts parts that are not drawn using standard SolidWorks modeling such as imported STEP or IGES models
