Medical Devices - Cancer Treatment Proton Gun Design (Gantry)
Solfins doo, Mladen Bogićević

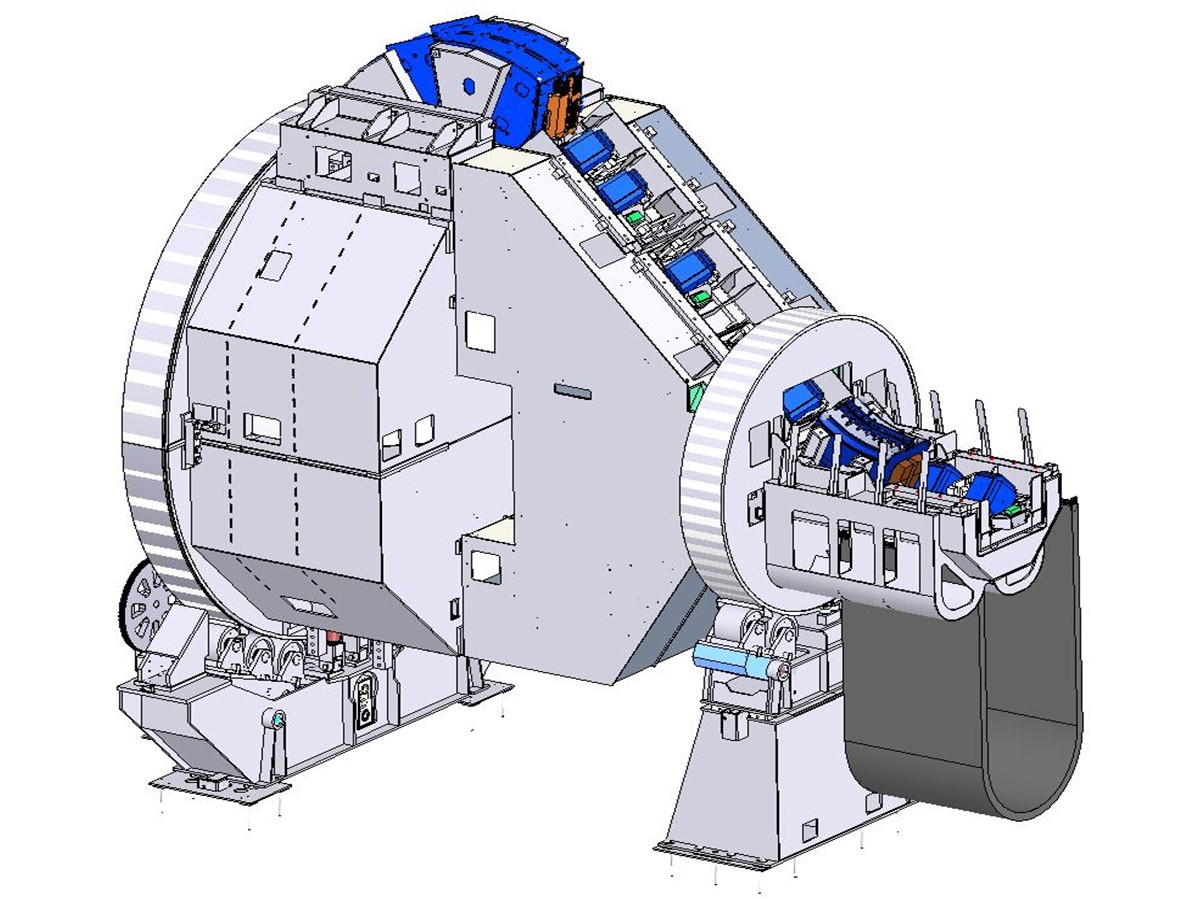

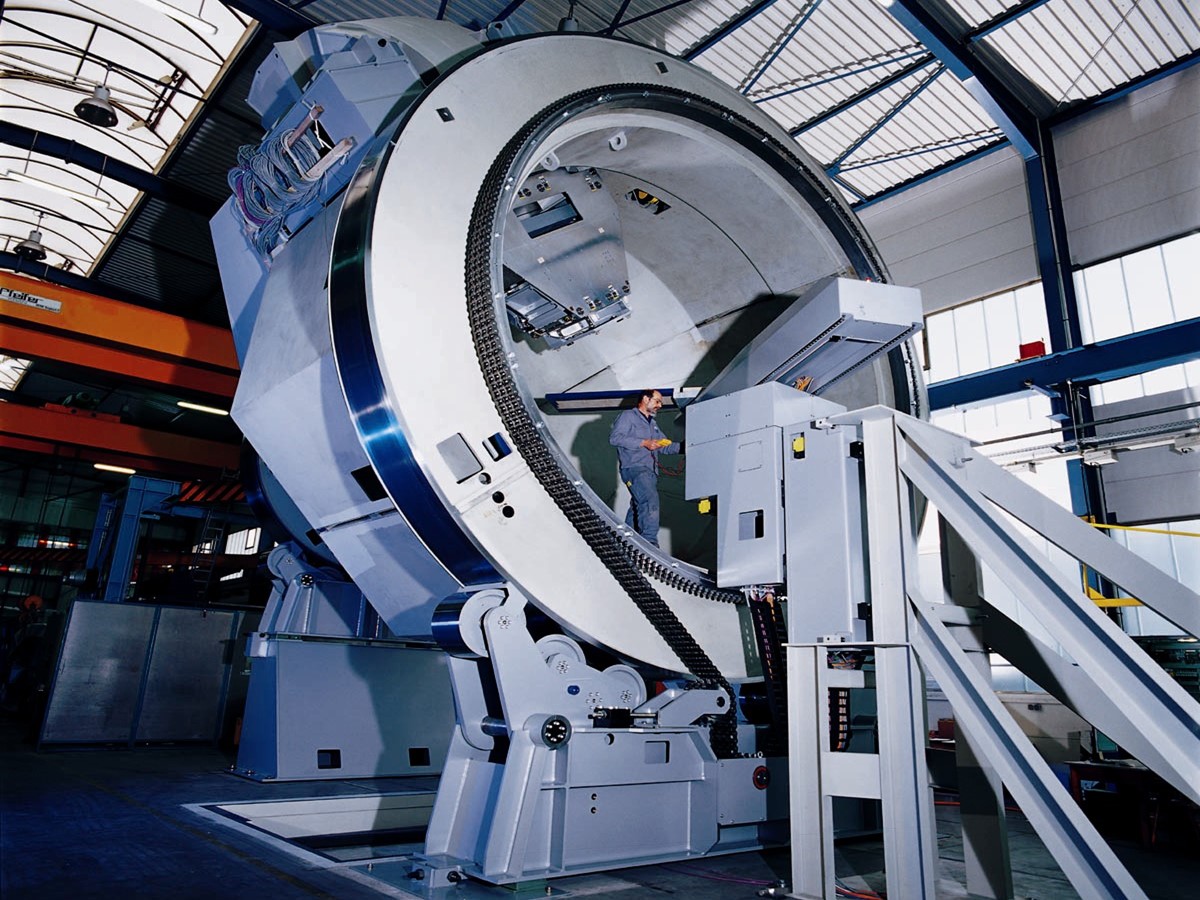

Gantry cancer treatment proton gun design.

Structural analysis and optimization of welded structure.

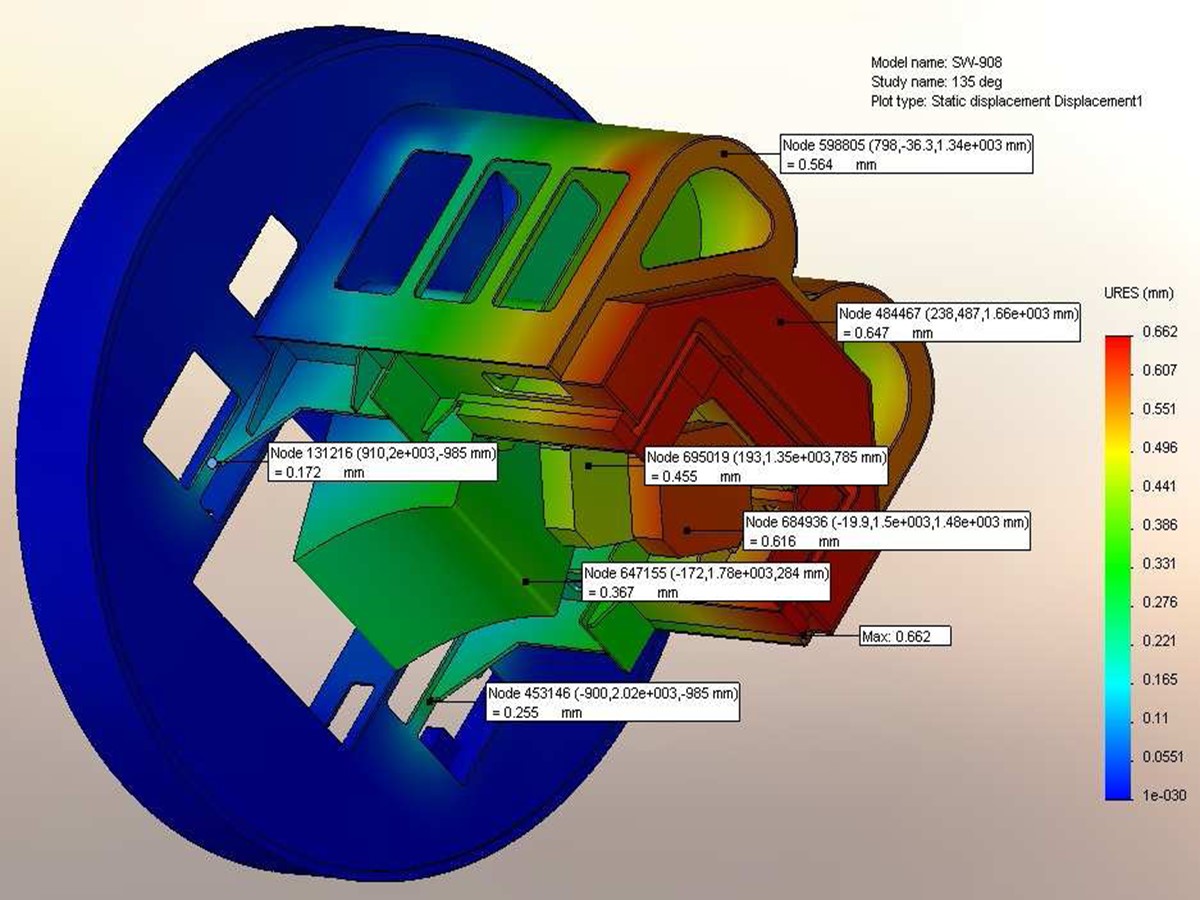

Reduced deformations from 0.707 mm to 0.132 mm.

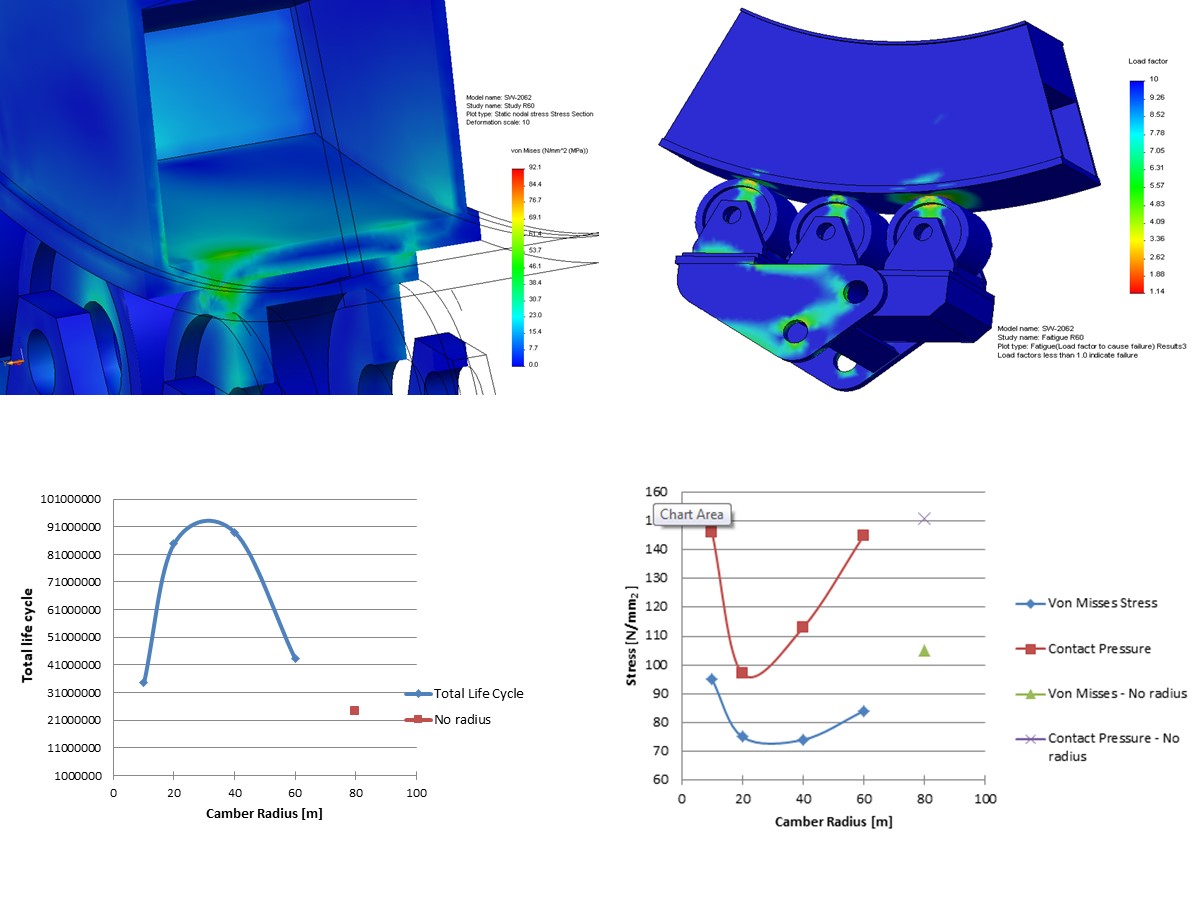

Fatigue analysis of roller supports and optimization of roller radius (camber radius).
